AdirPro Mini Cube Cross Line Laser ADI790-45
AdirPro Mini Cube Cross Line Laser ADI790-45 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Free delivery over $199 for small items.
AdirPro Mini Cube Cross Line Laser ADI790-45
Highlight title
Text to highlight a key feature of your product
Description
Description
Description

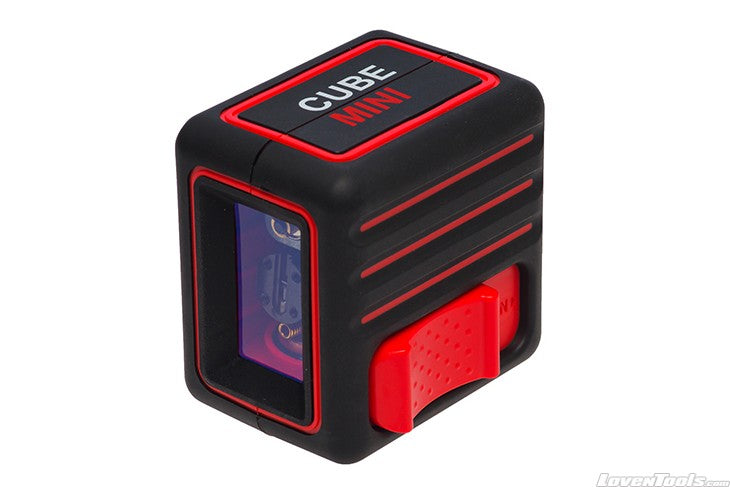

The AdirPro Mini Cube Cross Line Laser is a self-leveling line laser with a working accuracy of 3/16 at 30 feet (± 5mm at 10 meters). Featuring one laser diode with T-prism, it produces lower brightness and shorter lines but still fits normal interior work applications. Using a self-leveling pendulum system, the horizontal and vertical lines projected by the Mini Cube forms a 90-degree angle.
This AdirPro cross line laser has an extra-large single power switch and it automatically levels when switched on. When out of level, the laser lines blink to notify the construction professional inclinations that are over 3 degrees. This compact line laser level is powered by two AA batteries and operates up to 20 hours. It comes complete with a 1/4" thread that can easily be mounted to a tripod.
The AdirPro Mini Cube Cross Line Laser is made from hard plastic and is coated with ribbed rubber for added grip and protection from shock. The interior laser system is protected by a locking compensator that automatically activates when the device is turned off.
Specifications
| General | |
| Warranty | 1-year |
| Weight | 0.8 lbs |
| Laser Type | 635nm |
| Dimensions | 2.5 in. x 1.7 in. x 2.5 in. |
| Laser Class | Class 2 |
| Measuring Capabilities | |
| Leveling Accuracy | ±3/16 in. at 30 ft (±5 mm/10m) |
| Working Range | 66 ft (20m) |
| Self-Leveling Range | ±3° |
| Number of Lines (Planes) | 2 |
| Beam Direction | Horizontal & Vertical |
| Battery/Power | |
| Operating Temperature | 26°F-113°F (-5°C-45°C) |
| Storage Temperature | -4°F-122°F (-20°C-50°C) |
| Operating Time | 20 hours |
| Power Source | (2) AA batteries |
| Applications | |
| Installing Windows and Partition Walls | Yes |
| Installing Drop Ceilings and Lights | Yes |
| Flooring and Tile Layout | Yes |
| Ceiling Joist and Rafter Alignment | Yes |
| Stud Plumbing and Alignment | Yes |
| Installing Plumbing Pipes and Conduit | Yes |
| Functions | |
| Setting out Right Angles | Yes |
| Horizontal Leveling | Yes |
| Vertical Aligning | Yes |
| Vertical and Horizontal Aligning | Yes |
| Aligning at an Angle | Yes |
| Features | |
| Tripod Thread | 1/4 in. |
| Environmental Class | IP54 |
| Self-Leveling | Yes, Pendulum |
