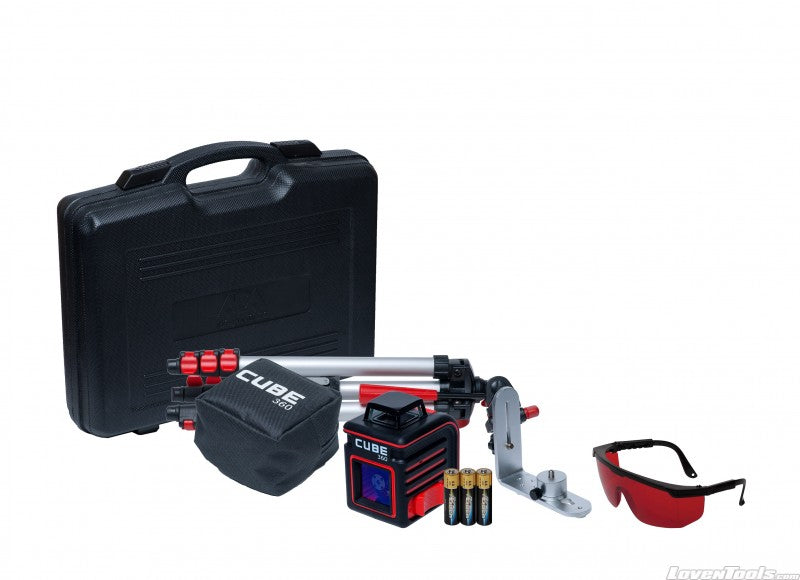

Cube 360 Cross Line Laser Ult ADI-790-37

The CUBE 360 laser is a cross line laser that has a pendulum level. This unit is self-leveling with a vertical accuracy range of within 4 degrees. Depending on the work area's illumination, the working range of this laser is up to 230 feet with a receiver, and 66 feet without a receiver. The two separate line beams are generated from 635-670nm laser diodes. The line beams have an accuracy of ±1/8 inch at 30 feet (±3mm at 10m).

The CUBE 360 laser level is a compact, practical option for basic cross line leveling work requiring a 360-degree horizontal line beam. In order to switch between indoor/outdoor modes, use the button next to the power button.

Measuring at 2 ½" x 3 ¼" x 3 ¼" (3 7/8" with the horizontal beam's housing), the laser can fit comfortably in the palm of your hand. It has a hard plastic housing to protect the laser beams and pendulum leveling system within. The housing has a ribbed rubber casing that protects it from scratches while giving extra friction to make it slip resistant.

There are 2 separate laser beams, one 360-degree horizontal beam and the other a straight vertical. This allows for intersecting layouts that require right angles. It's ideal for construction and repair work, such as laying pavement or tiles. It's a great option to use while hanging shelves, pictures, wall ornaments, hanging wallpapers, placing electrical wiring conduits, as a guide for suspended ceilings, and the like.

The CUBE 360 has a quick pendulum self-leveling system. Both laser beams are leveled through the same pendulum. Additionally, there is locking system to ensure that the compensatory does not shift during transportation due to vibrations. The switch has 3 settings. The first is when the unit is on and the leveling system is unlocked (this allows it to level automatically). The second is when the unit is on and the leveling system is locked (it will not level automatically). The third is when the unit is off and the leveling system is locked.

Note: When the leveling system is unlocked, if the unit is out of leveling range it will beep to alert you.

The CUBE 360 laser level has two mounting nuts with a ¼" threads; one at the back of the unit and the other on the bottom of the unit. This allows you to mount it either to a bracket or a tripod for security. The unit can be placed on a regular surface, but securing it usually guarantees less movement for more accurate work.

Specifications
